Descriptions

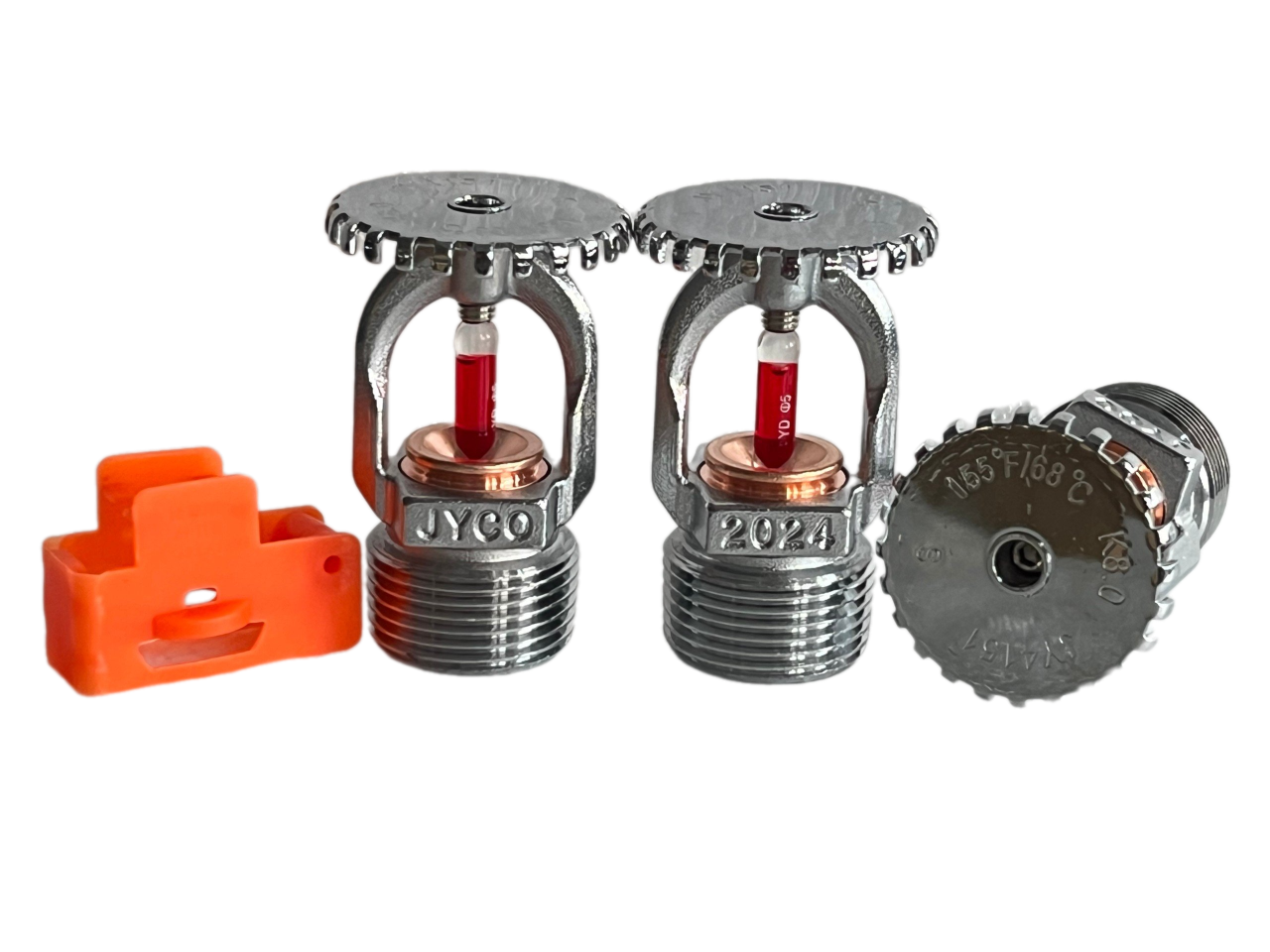

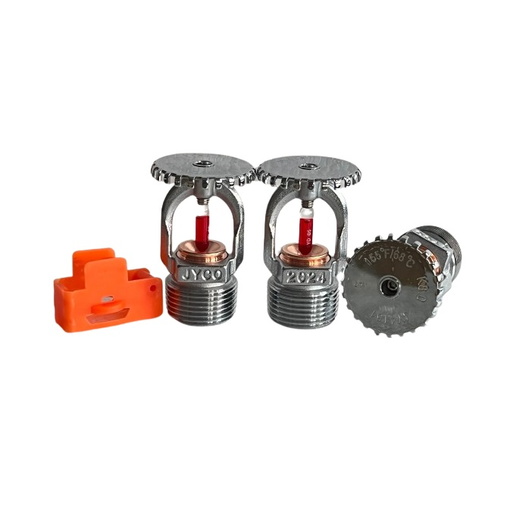

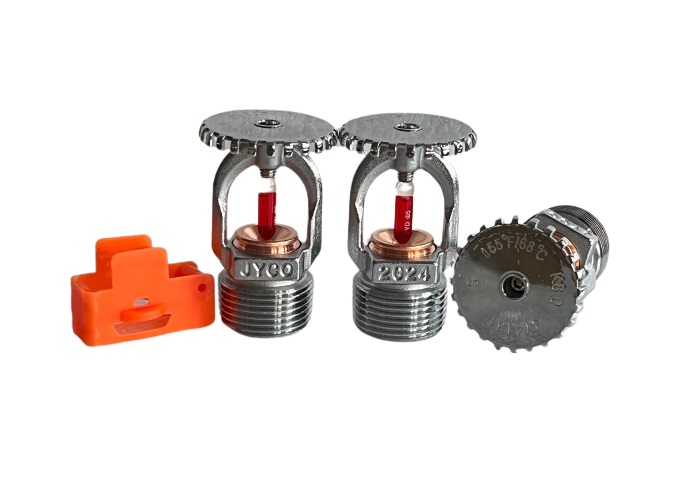

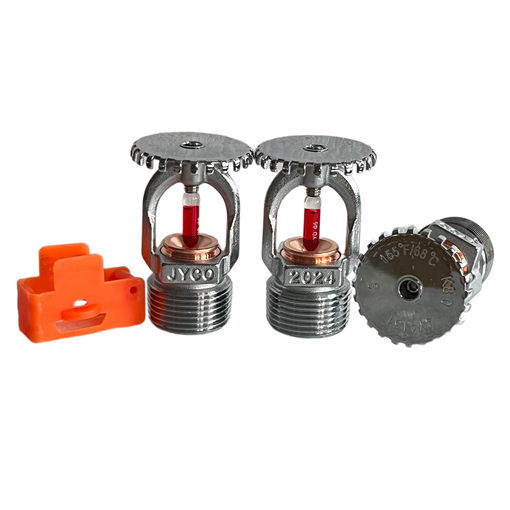

The Jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325 must be installed in pendent position, and upright sprinklers are to be installed in the upright position. Pendent Recessed Sprinklers are installed with adjustable or non-adjustable Escutcheon plates (also termed as Rosette plates). These are intended to be installed with finished ceilings. Escutcheon plate adjustment provides convenience in PendentSprinkler installation in case of areas with finished ceilings or walls.

Sprinkler ratings Jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325

Technical data Jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325

Material Specifications Jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325

Operatión Jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325

The Sprinkler operating device is state of the art heat responsive frangible glass bulb supplied by a world leader in this innovative technology. The glass bulb contains fluid which expands when exposed to heat. When rated temperature is reached, the bulb shatters and water flows through the sprinkler and strikes deflector, forming a uniform water spray pattern to control or extinguish fire

Care and Handlin

Sprinklers must be handled with due care, they must be stored at ambient temperature for best results and in a separate space in order NOT to allow metal parts coming in contact with sprinkler or bulb. Storage as well as any onward shipment is to be made in original packaging only.

Always store the sprinklers with protective sprinkler caps. Do not remove the protective sprinkler caps until the sprinklers are installed in the system, in order to protect sprinklers from mechanical damage.

Sprinklers caps must be removed carefully without touching / damaging the bulb element, before placing the system in service. Sprinklers must be visually inspected carefully before installation. Sprinklers visibly damaged, dropped or exposed to temperature in excess of the maximum ambient temperature permitted, should never be installed.

Never install any glass blub sprinkler if the bulb is cracked or if there is a loss of liquid from the bulb.

Sprinkler must be installed after the piping is in place to prevent mechanical damage. Use Teflon Tape or soft thread sealent on male thread of the Sprinkler for the leak tight Sprinkler joint. Use proper wrench. The sprinkler must be hand tightened into the fitting. After hand tightening, use Sprinkler

Wrench Model JP-M for wrench tightening into sprinkler fittings. A leak-tight 1/2 NPT/BSPT Sprinkler joint should be obtained by applying maximum torque of 19.0 N-m (14 lb-ft). Excessive tightening torque may distort the Sprinkler inlet and cause leakage.

Sprinkler must never be painted, plated or coated after they leave factory. The JYCO Sprinkler described herein must be installed and maintained in accordance with the latest edition of JYCO technical data, the latest standard of National Fire protection Association (NFPA) and CE or to the standard of any other authorities having jurisdiction. The owner is solely responsible for maintaining their fire protection system and device in proper operating condition.

Exposure to ultraviolet or direct sunlight for extended period may cause the liquid dye in glass bulb to fade or lose colour. Colourless or faded coloured bulbs are not a problem, as long as the fluid level has not been affected. The loss of colour in the liquid will not effect sprinkler performance, as long as the bulb is intact and not damaged. The loss of colour may be an issue in identifying sprinkler temperature rating, but the temperature rating is still stamped on the sprinkler deflector.

Inspection Testing and Maintenance

Refer to NFPA 25 for inspection testing and maintenance requirement or to the authority having jurisdiction. For details of warranty, refer JYCO’s current price list, conditions of sale or contact JYCO directly.

In case of using jyco Sprinkler k 56 Upright JY315 JY313 and Pendent JY323 JY325 as part of CE Approved Low Expansion Foam Systems, the certification of the system is contingent upon piping designedand installed in accordance with NFPA 11 and/ or CE Global Property Loss Prevention
